Temperature and Humidity Measurement Solution
Temperature and Humidity Measurement Solution

Temperature and Humidity Measurement Solution

Category： Intelligent Detection and Control System

E-mail: Sherry.fu@3moretech.com

Inquiry Recommend

Product Details

Application

◆ Mid/High voltage switchgear

◆ Distribution cabinet

◆ Box Transformer Substation

◆ Terminal box

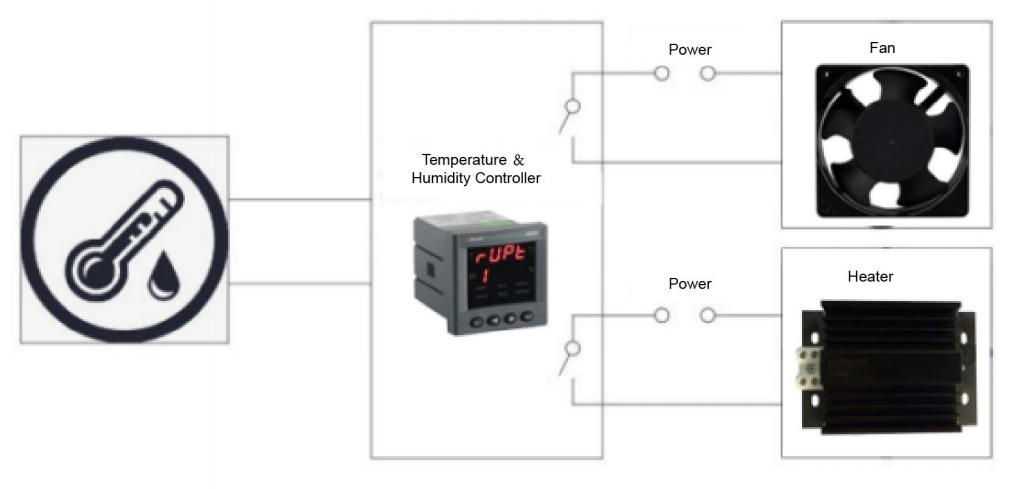

Structure

1

1

Advantage

◆ Automatic heating and dehumidification

◆ Communication:RS485(Modbus-RTU)

◆ Humidity measurement range: 0-99%RH

◆ Temperature measurement range:-40C~99.9C

◆ Working humidity of controller:≤95%RH

◆ Working temperaure of controller:-20C~60℃

◆ LED Display

◆ Analog output

◆ Alarm

Product Selection



Type

Functions

Temperature & Humidity Controller

WHD48

Panel mounted
1 channel
RS485(Modbus-RTU)
LED Display
Temperature±1C
Humidity ±5%RH

WHD72

Panel mounted
2 channels
RS485(Modbus-RTU)
LED Display
Temperature ±1℃
Humidity±5%RH

WHD46

Panel mounted
3 channels
RS485(Modbus-RTU)
IED Display
Temperature ±1℃
Humidity ±5%RH

WHD20R

DIN rail mounted
2 channels
RS485(Modbus-RTU)
LED Display
Temperature ±1C
Humidity ±5%RH

Heater

MLW-100W

Operating Voltage:AC220V AC110V
Rated Power:50-300W
Insulation resistance:≥1000MQ

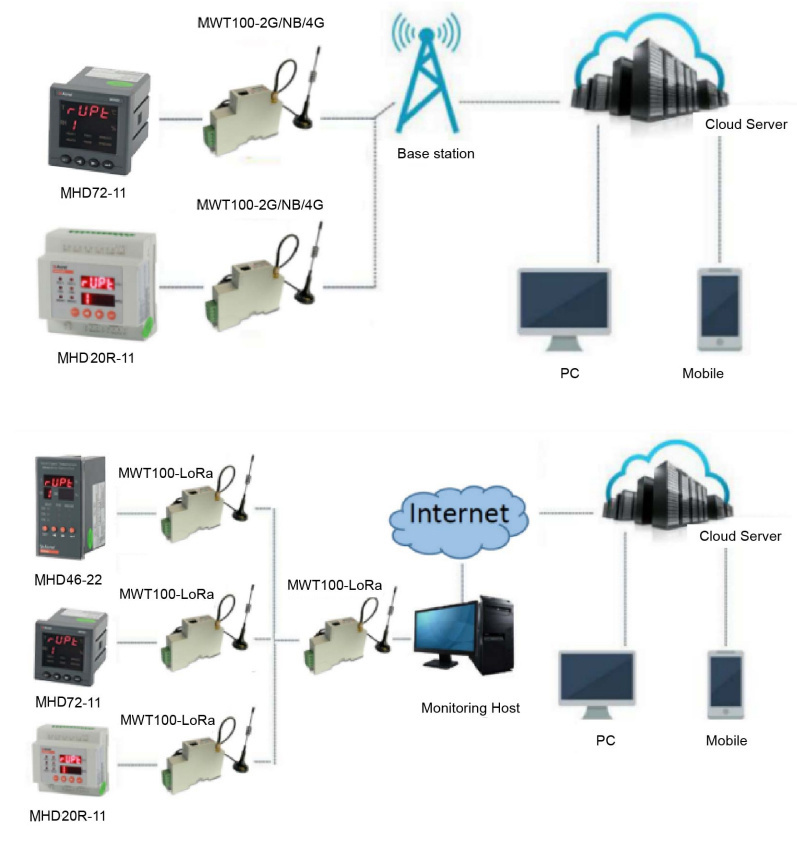

Smart Gateway

MWT100

Working pressure:DC24V orAC/DC220V
Baud Rate:4800bps、9600bps、19200bps、38400bps
Communication:RS485
