Product Details

Application

◆ Backflow prevention

◆ Energy storage

◆ Bidirectional energy metering

Structure

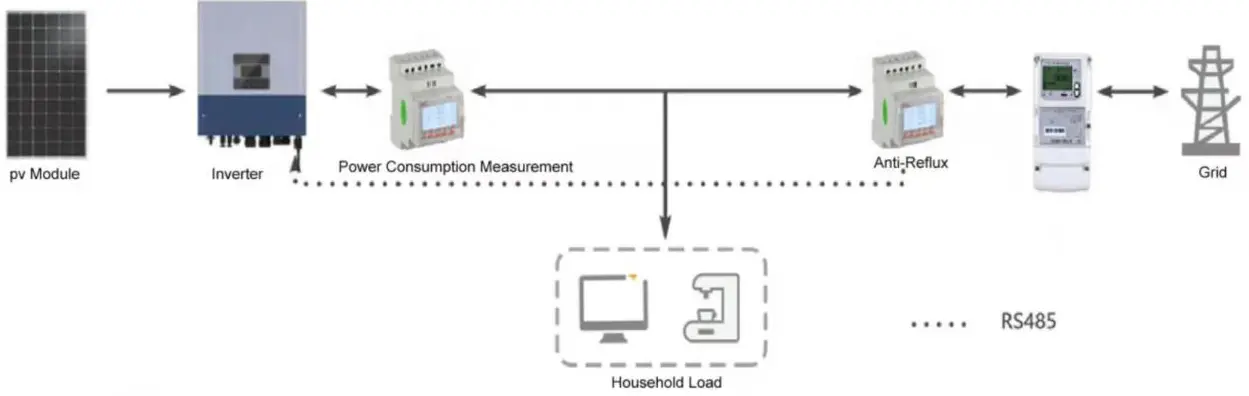

1. Solution for PV anti-backflow



1

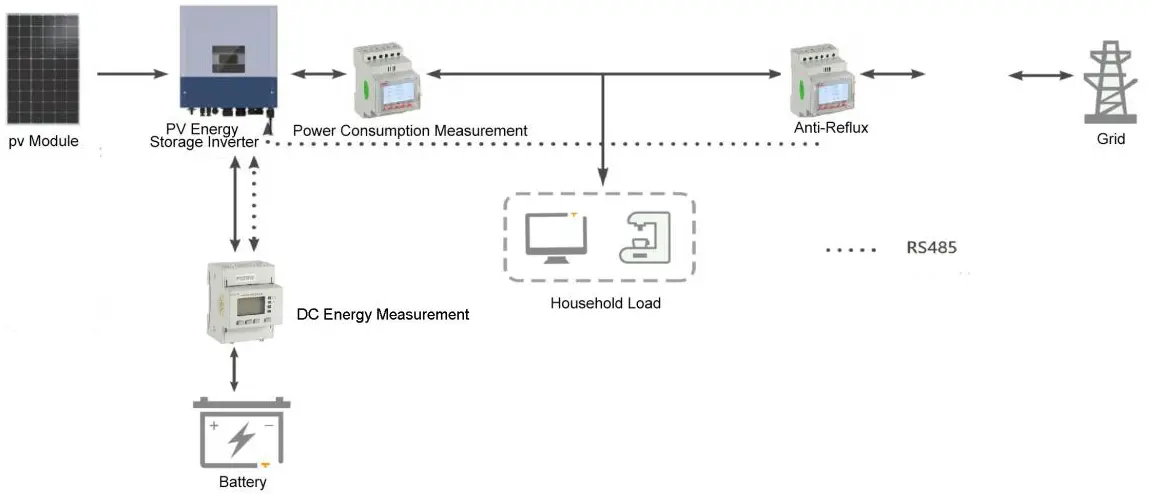

2. Solution for PV DC coupled energy storage



1

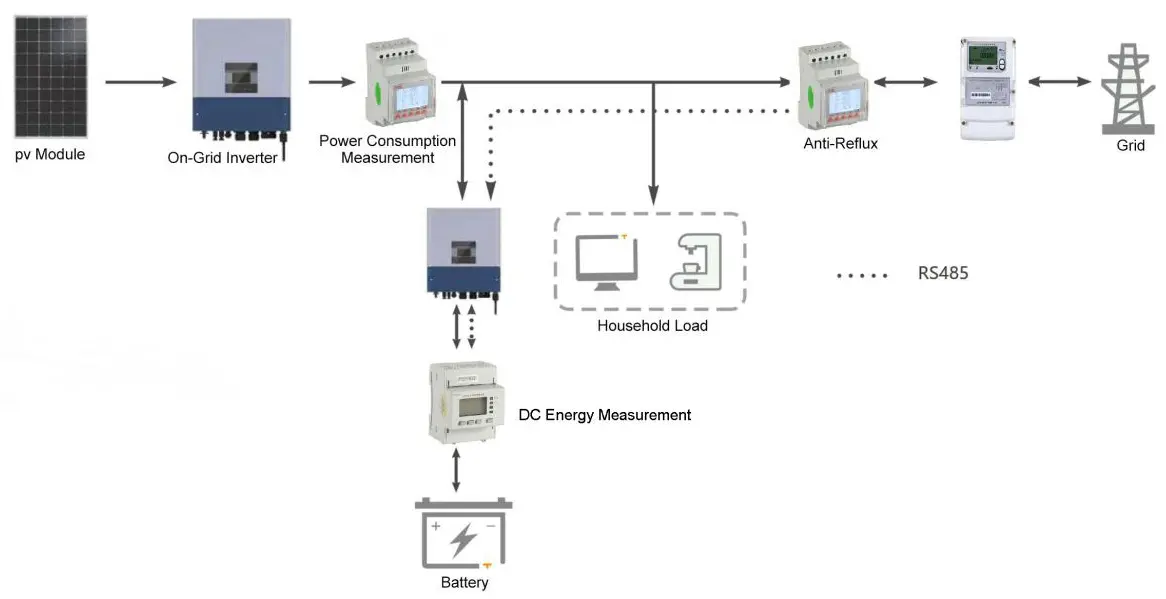

3. Solution for photovoltaic AC coupled energy storage



1



Main Functions

Measure power generation and the use of electricity;

Data refresh rate:250ms;

Split core CT,300A current;

Communication:RS485 and grid-connected inverter or energy storage inverter.

■ DJSF1352-RN DC Energy Meter

Accuracy:1,voltage output:±12V;

Communication:infrared and RS485 communication,Modbus-RTU and 645 protocol;

DIN rail installation;

Support hall sensor or shunt input.

Product Selection

Application

Model

Functions

Single phase

MCR10R-DXXTE

Currentvoltage/frequency/power factor;Active power/reactive power/ apparent power;Four quadrant electric energy measurement;
Modbus(RS485)

Two phase

MGF-AE-D

Current/voltage/frequency/power factor;Active power/reactive power/ apparent power;Four quadrant electric energy measurement;
Suport Sunspect protocol(RS485)

Three phase

MCR10R-DxxTE4

Currentvoltage/frequency/power factor;Active power/reactive power/
apparent power;Four quadrant electric energy measurement;
Maximum demand;Multiple rate electric energy measurement
Total harmonic content subharmonic(2-31 times);Modbus(RS485)
