Smart Busway Monitoring Solution
Smart Busway Monitoring Solution

Smart Busway Monitoring Solution

Category： Intelligent Detection and Control System

E-mail: Sherry.fu@3moretech.com

Inquiry Recommend

Product Details

Application

◆ Connection between low voltage cabinet

◆ Incoming line system at voltage transformer connection

◆ Power distribution in factory

◆ Power supply in high buildings

◆ Device with big current

Structure

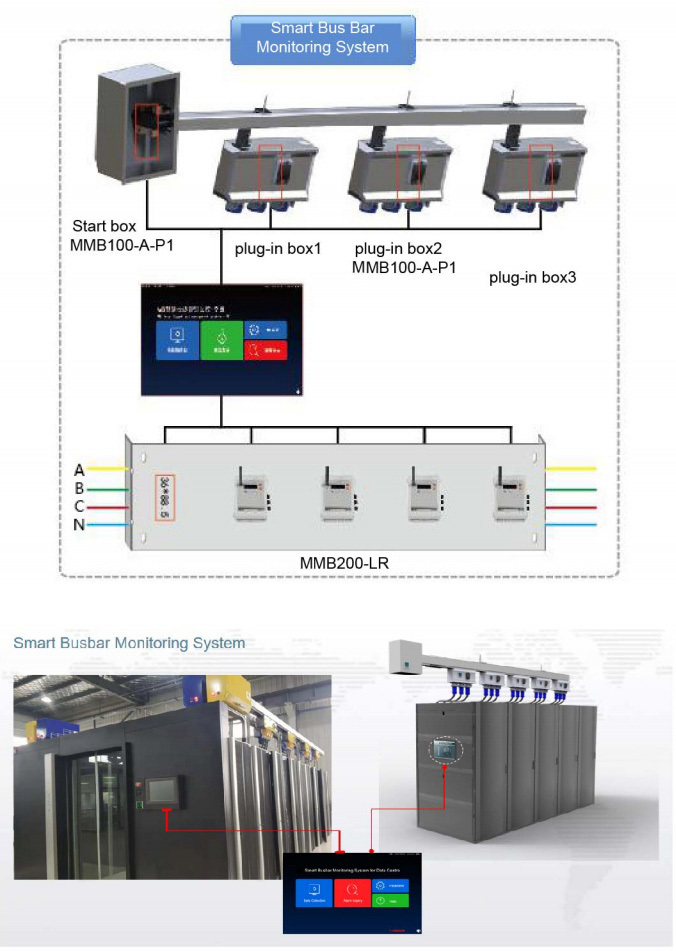

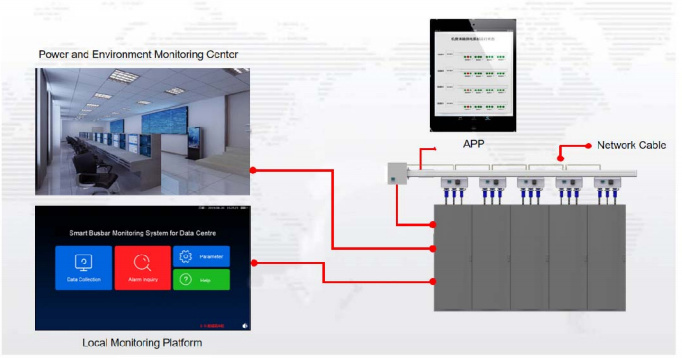

■ Smart Bus Bar Monitoring System

1

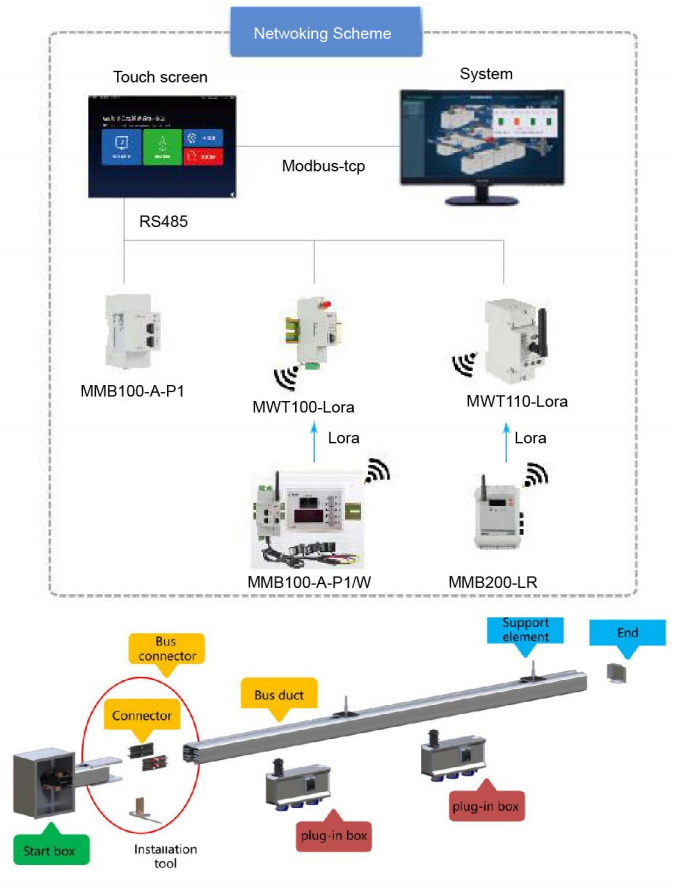

■ Networking Scheme

1



1

Main Functions

◆ AMB100 or AMB110 is usually installed in the busbar start box and plug-in box

◆ Measurement:AC or DC busbar voltage,current,harmonics and other parameters.

◆ Realize temperature monitoring of the busbar plug interface

◆ AMB200 is usually installed at the connector of the dense AC busbar,and can monitor temp.And humidity at the connector.

◆ Communication:LoRa or RS485

Product Selection

Name

Type

Functions

HMI

MTP010k

10 inch touch screen;Real-time monitoring and display voltage,current power,energy,power quality,switch status,wave curve,etc.of the busbar;
monitoring device alarm,communication and other parameters can be
configured on the screen;2 RS485 and 1 Ethernet,and data can uploaded by RS485 or RJ45

AC start box monitoring module

MTP010kt

Installation:DIN Rail 35mm;Measurement:3 phase electrical parameters
2DI2DO,8 temp.,1 leakage current,1 temp.and humidity;Communication 1 in 1 out type RJ45 interface(Modbus protocol)

AC plug-in box monitoring module

MMB110-A-P1

nstallation:DIN Rail 35mm;Measurement.3 phase electrical parameters
2D₁2D0,4 temp.,1 leakage current,1 temp.and humidity;Communication 1 in 1 out type RJ45 interface(Modbus protocol)

DC start box monitoring module

MMB100-D-P1

Installation:DIN Rail 35mm;Measurement:1 DC circuit electrica
parameters,4DI2D0,8 temp.,1 leakage curent,1 temp.and humidity;
±12V output to power hall current sensor;Communication:1 in 1 out type RJ45 interface(Modbus protocol)

DC plug-in box monitoring module

MMB110-D-P1

Installation:DIN Rail 35mm;Measurement:3 DC circuits electrical
parameters,4DI2DO,4 temp.,1 leakage current,1 temp.and humidity;  ±12V output to power hall current sensor;Communication:1 in 1 out type RJ45 interface(Modbus protocol)

AC bus connector temp measurement device

MMB200-LR
MMB200-C

Installation:Fixed on the cover of the busbar connection;Contact temp. measurement.measure and display temp.of 4 AC busbars
Communication:RS485 or LoRa

DC outaoing line hall effect current sensor

MHKC-BS

Current ratio:100A/5V
Common Specification:100A/5V
