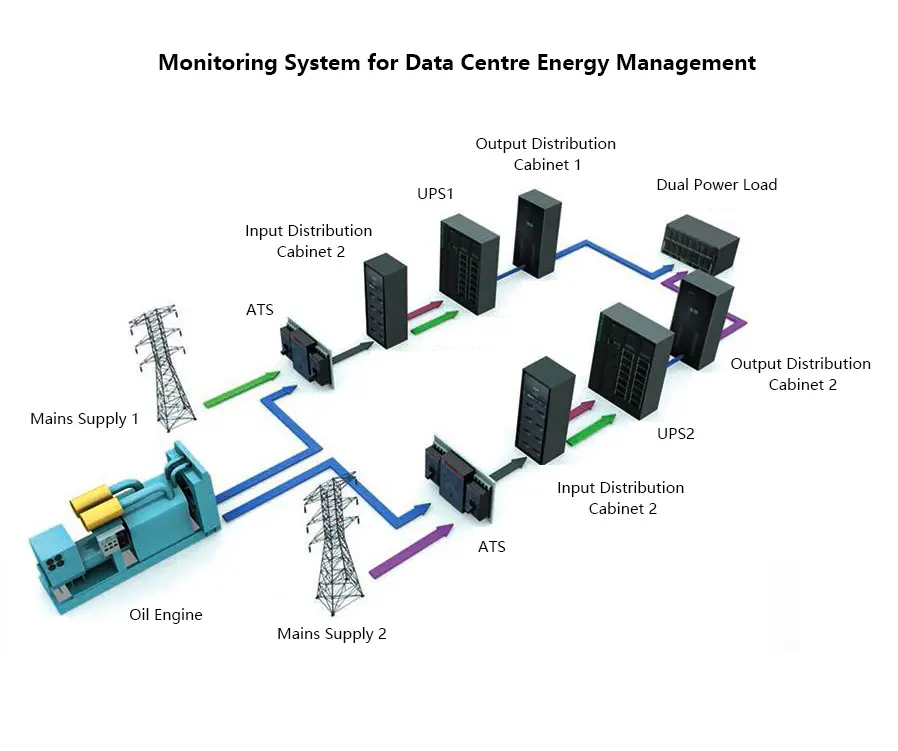

Application

◆ Power monitoring at the end of data center

◆ Multi channel power distribution box of the floor

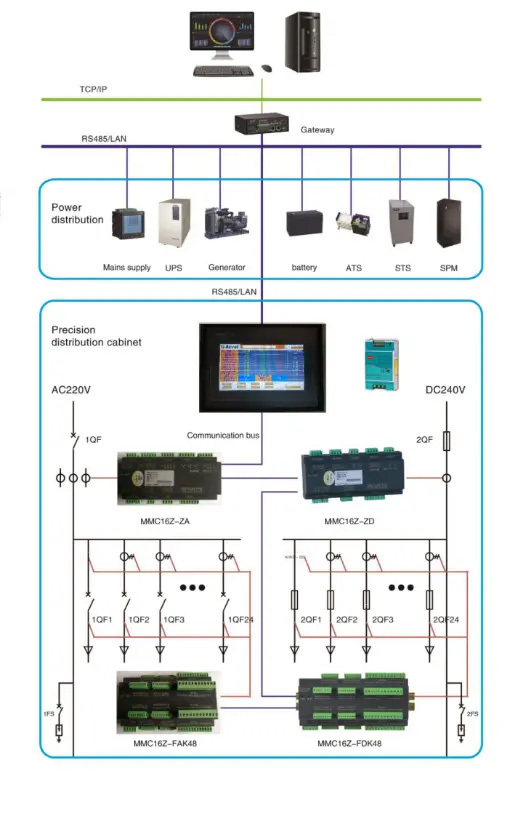

Structure

1

1

Main Functions

◆ Incoming line and outgoing line circuits independent monitoring modules

◆Can measure up to 2 incoming line circuits and up to 192 outgoing line circuits current,voltage, power,energy and power quality.

◆ Data centralized monitoring and display by HMl and data is uploaded to power and environment monitoring system through RS485.

◆ For high voltage DC 240V or 336V system,insulation monitoring module can be added to monitor ground insulation resistance of main bus.

◆ DC24V power supply for touch screen and outgoing line monitoring module(power supply from main module output )

◆ Communication:monitoring device by RS485,touch screen by RS485 or RJ45

◆ Certificate:CE

Product Selection

Name

Type

Functions

HMI

MTP007kt
MTP010k

7 or 10 inch touch screen;Real-time monitoring and display voltage  current,power,energy,power quality,switch status,waveform curve and so on;monitoring device alarm,communication and other parameters
can be configured on the screen;2 RS485 and 1 Ethernet interface, and data can be uploaded by RS485 or RJ45

AC incoming line
monitoring module

MMC16Z-ZA

Installation:DIN rail 35mmMeasurement:1+2 independent 3 phase
circuits,6DI2DO,2 leakage current,1 temp,and humidity;With DC
24V output power supply for outgoing line module and touch screen;
Communication:RS485 Modbus RTU

AC outgoing line
monitoring module

MMC16Z-FAK24
MMC16Z-FAK48

Installation:DIN rail 35mm;Can measure up to 16 circuit 3 phase or 48 circuit single phase;DC24V power supply;Communication:RS485
modbus RTL

AC outgoing line
current transformer

MKH-0.66W

Current ratio:100A/50mA;Common Specification:100A/50mA

DC incoming line
monitoring module

MMC167-Z0

Installation:DIN Rail 35mm;Measurement:1+2 independent circuits 6DI2DO,1 temp.And humidity;With DC 24V output power supply for  outgoing line module and touch screen;Communication:RS485
modbus RTU

DC outgoing line
monitoring module

MMC16Z-FDK24
MMC16Z-FDK48

nstallation:DIN Rail 35mm;Can measure up to 48 circuits D outgoing line;DC24V power supply;Communication:RS485
modbus RTU

DC incoming line
insulation monitoring module

MMC16Z-ZJY

Installation:DIN Rail 35mm;Measure 1+2 independent DC circuit ground insulation resistance of main bus;DC24V power supply;
Communication:RS485 modbus RTU

DC outgoing line
nsulation monitoring module

MMC16Z-FJY

Installation:DIN Rail 35mm;Measure 24 circuits ground insulation resistance of DC outgoing line

DC outgoing line
hall effect current senso

MHKC-RS

Current ratio:100A/5V;Common Specification:100A/5V
