Energy Consumption Monitoring Solution for Base Station
Product Details
Application
◆ Mobile telecom
◆ Telecommunication carrier
◆ China unicom

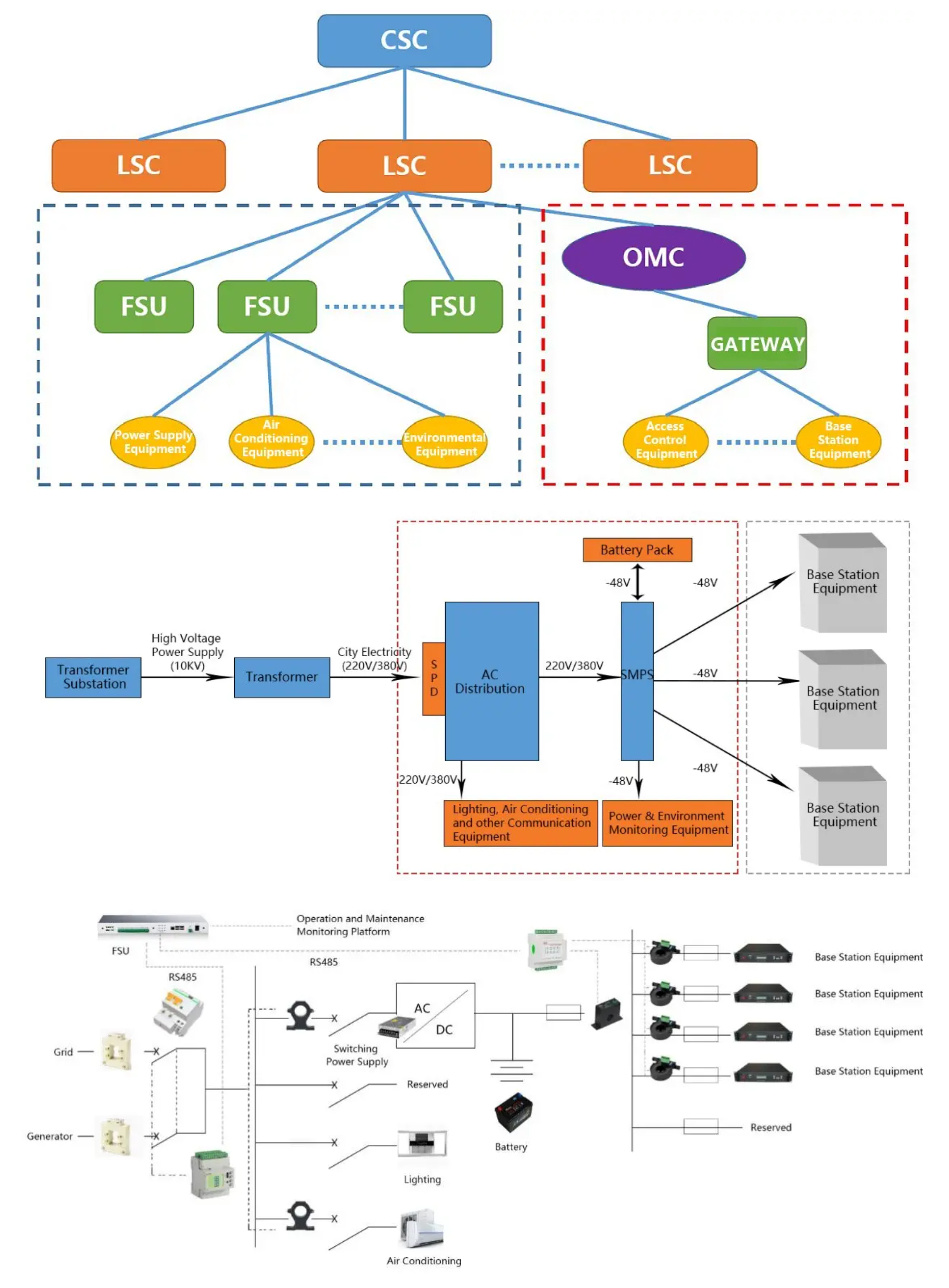

Structure
Main Functions
◆ Measurement:multi circuits voltage,current,power,energy and other electrical parameters.
◆ Communication:RS485 Modbus-RTU,NB or 4G
◆ Certificate:With CE and IEC
◆ Accuracy:0.5s or 1
Product Selection
|
Name |
Type |
Functions |
|
AC single circuit energy meter |
MMC96L-E4/KC |
Installation:panel mounted;1 circuit 3 phase input 220V/5A 50/60HZ; |
|
Multi circuits AC energy meter |
MMC96N-4E3 |
Installation:panel mounted;4 circuits 3 phase or 12 circuits single phase AC input,external CTs,50/60HZ;Measurement:voltage,current,energy and other parameters;Communication:RS485 Mobus RTU |
|
Multi circuits AC energy meter |

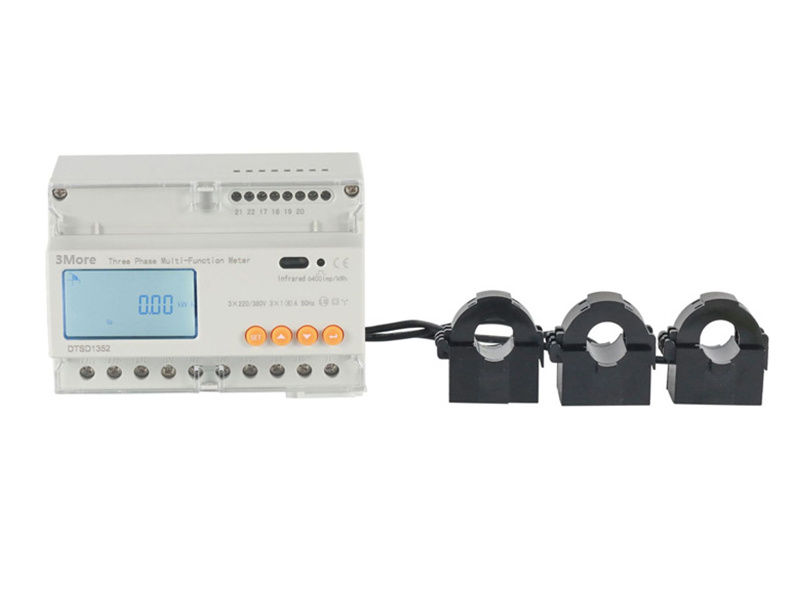

DTSD1352-xSyD |
Installation:DIN Rail 35mm;X circuits 3 phase and Y circuits single phase AC input,external CTs,50/60Hz;Measurement voltage,current,power,energy and other parameters;Communication:RS485 Modbus RTU |
|
Multi circuits DC energy meter |
MMC16-DETT |
Installation:DIN Rail 35mm;6 circuits DC input,-48V voltage input,current nput by 5V output hall effect current sensor;Measurement:DC voltage current,power,energy and other parameters;With±12V inner power supply for hall effect current sensor;Communication:RS485 Modbus RTU |
|
Wireless energy meter |
MDW35C |
Installation:DIN Rail 35mm;3 circuits DC input or 1 circuit 3 phase AC nput;Measurement:voltage,current,power,energy and other parameters |
|
Hall Sensor |
MHKC |
Ratio:1000A/5V;Common Specification:1000A/5V |
