Charging Pile Energy Management System Solution
Charging Pile Energy Management System Solution

Charging Pile Energy Management System Solution

Category： Intelligent Detection and Control System

E-mail: Sherry.fu@3moretech.com

Inquiry Recommend

Product Details

Application
◆ AC and DC charging piles

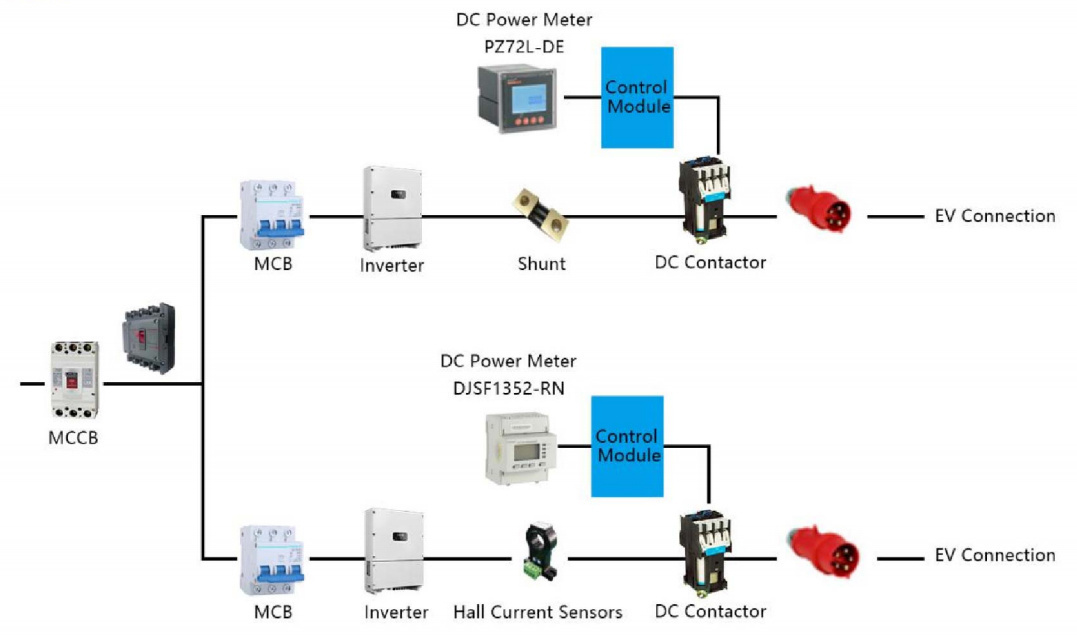

Structure

1

1

Main Functions

◆ Energy Accuracy:Class 0.5S or Class 1

◆ Optional multi tariff

◆ With CE or IEC certificed

Product Selection

Item

Type

Functions

Single Phase AC Energy Meter

MDL10-E

Din rail mounted;single-phase 60A,50/60Hz input;measurement of
electrical parameters such as voltage,current,power,energy;RS485 communication (Modbus protocol)

MDL100-FT

Din rail mounted;single-phase 60A,50/60Hz input;measurement of
lectrical parameters such as voltage,current,power,energy;RS48
communication (Modbus protocol).energy pulse output;optional multi tariff

MDL200

Din rail mounted;single-phase 80A,50/60Hz input;measurement of
electrical parameters such as voltage,current,power,energy,etc.;   RS485 communication (Modbus protocol);energy pulse output;optional multi tariff.

Three Phase AC Energy Mete

MDL40

Din rail mounted;three-phase 80A,50/60Hz input;measurement of
electrical parameters such as voltage,current,power,energy;RS485
communication (Modbus protocol);energy pulse output;optional multi tariff.

MDL3000-E

Din rail mounted;three-phase 80A,50/60Hz input;measurement of
electrical parameters such as voltage,current,power,energy;RS485
communication (Modbus protocol);energy pulse output;optional multi tariff.

DC Energy Meter

PZ72(L)-DE

Din rail mounted;single-phase 80A,50/60Hz input;measurement of
electrical parameters such as voltage,current,power,energy,etc.
RS485 communication (Modbus protocol);energy pulse output;optional multi tariff

DJSF1352

Wall mounted,measure DC voltage,current,power;measure DC
energy;direct connect voltage 0-1000V;current measurement
supports 75mV output of shunt,supports 0-5V,0-20mA output of
hall;RS485(Modbus protocol)

DJSF1352.RN

Din-rail mounted,support optional two-channel DC voltage,current power measurement;measure DC energy;direct connect voltage
0-1000V;current measurement support shunt 75mV output,support
Hall sensor 0-5V,0-20mA output;RS485 communication (Modbus protocol)

Shunt

MFL-T

Common Specification:300A/75mV

Hall Sensor

MHKC

Common Specification:1000A/5V
