MUM Series 37.5~1200kVA Modular UPS (208V)
MUM Series 37.5~1200kVA Modular UPS (208V)
MUM Series 37.5~1200kVA Modular UPS (208V)
MUM Series 37.5~1200kVA Modular UPS (208V)

MUM Series 37.5~1200kVA Modular UPS (208V)

Category： UPS

E-mail: Sherry.fu@3moretech.com

Inquiry Recommend

Product Details

Power range

37.5~1200kVA

Operation

3P/3P,Online double conversion

Applications

Government,Finance,IT,Education,Transportation,Broadcasting,Medical,Energy,etc.

Characteristics

·Fully digital control,flexible and robust.

·10 inch touch LCD,with loT functions.

·High reliability and environment adaptability,with protection of components level.

·Intelligent system self-diagnosis,rich fault recording,large capacity of history record storage space.

·Maximum system capacity up to 1.2MVA,the best solution for mega data center.

Model

MU300-L

MU600-L

MU900-L

MU1200-L

Rate Power

300kVA

600kVA

900kVA

1200kVA

Main input

Input

3P5W(3P+N+PE)

Rate Voltage

200/208/220VAC(L-L)

Rate Freq

50/60Hz

Input PF

>0.99

Current distortion

THDi<3%(100%Linear load)

Voltage range

166～261VAC(L-L)full load;125~166VAC (L-L)power derate from 100%to 75%

Freq.range

40-70Hz

Battery

Rate voltage

±120VDC

Charging capacity

20%*Pout

Charging accuracy

±1%

Bypass

Rate yoltage

200/208/220VAC(L-L)

Voltage range

Range:-40%-+25%,Settable,default -20%～+15%;

Overload

110%,long time operation
110%<load<125%,5 mins
125%<load<150%,1 min
>150%,1 second

Inverter

Rate voltage

200/208/220VAC(L-L)

Rate Freq.

50/60Hz

Output PF

1

Voltage accuracy

±1.0%

Load response

<5%(20%-80%-20%step load)

Recovery time

<20ms (0%-100%-0%step load)

Output THDu

<1%(linear load),<5%(non-linear load according to IEC 62040-3)

Overload

110%,1 hour;125%,10 mins;150%,1 min;>150%,200ms

Frequency accuracy

0.1%

Synchronize window

Settable,±0.5Hz-±5Hz,default ±3Hz

Slew rate

Settable,0.5Hz/S-3Hz/S,default 0.5Hz/S

Crest factor

3:1

Phase Accuracy

120°±0.5°

System

Ffficiency

Normal Mode 293%;Battery Mode293%

Display

LED+10 inch touch LCD

Certification-Safety

IEC62040-1,IEC60950-1

Certification-EMS

IEC62040-2;IEC61000-4-2(ESD);IEC61000-4-3(RS);IEC61000-4-4(EFT);IEC61000-4-5(Surge)

IP degree

IP20

Configuration

USB,RS232,RS485,Dry contact,Cold start,Air filter

Option

SNMP card、AS400 card、Parallel kit、SPD、LBS

Environment

0-40℃(operation);-25℃~70℃(storage);0-95%(Humidity,non-condensing)

Noise(dB)(1 meter)

72dB @100%load,69dB @45%load

Dimension

Cabinet(W*D*H)mm

600*1000*2000

2000*1000*2000

2800*1000*2000

3600*1000*2000

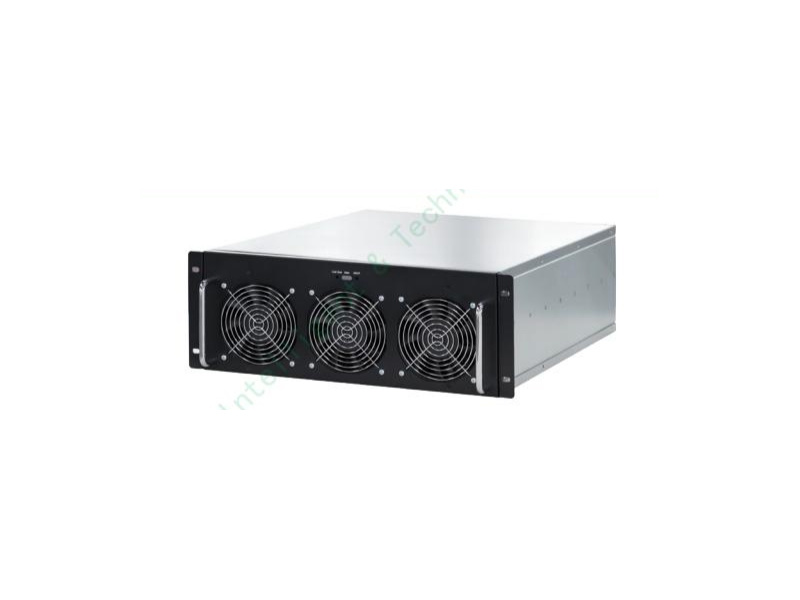

Module(W*D*H)mm

442*659*174

Weight(kg)

Cabinet

250

600

850

1100

Module

41

Power Module rated capacity

37.5KW

Statement:The products will continue to be innovative and optimized,which may lead to asynchronized updates of the actual product and promotional materials.Therefore,this document is for reference only and does not constitute any offer or commitment.
