MUM Series 25~300kVA Modular UPS
MUM Series 25~300kVA Modular UPS
MUM Series 25~300kVA Modular UPS
MUM Series 25~300kVA Modular UPS

MUM Series 25~300kVA Modular UPS

Category： UPS

E-mail: Sherry.fu@3moretech.com

Inquiry Recommend

Product Details

Power range

25~300kVA

Operation

3P/3P,Online double conversion

Applications

Government,Finance,IT,Education,Transportation,Broadcasting,Medical,Energy,etc.

Characteristics

·Fully digital control,flexible and robust.

·10 inch touch LCD,with loT functions.

·High reliability and environment adaptability,with protection of components level.

·Extreme high power density,30kW in 2U,friendly for space and maintenance.

·Option of 30A charger module for long backup applications.

Model

MU250/25

  MU300/30

Rate Power

250kVA/250kW

  300kVA/300kW

Main input

Input

3P5W(3P+N+PE)

Rate Voltage

380/400/415VAC(L-L);220/230/240VAC(L-N)

Rate Freq

50/60Hz

Input PF

>0.99

Current distortion

THDi<3%(100%Linear load)

Voltage range

304～478VAC(L-L)full load;304～228VAC(L-L)power derate from 100%to 75%

Freg,range

40-70Hz

Battery

Rate yoltage

±240VDC

Charging capacity

20%*Pout

Charging accuracy

±1%

Bypass

Rate yoltage

380/400/415VAC(L-L)220/230/240VAC(L-N)

Voltage range

Range:-40%-+25%,Settable,default-20%～+15%;

Overload

110%,long time operation;110%<load<125%,5 mins;
125%<load<150%,1 min;>150%,1 second

Inverter

Rate voltage

380/400/415VAC(L-L);220/230/240VAC(L-N)

Rate Freq.

50/60Hz

Output PF

1

Voltage accuracy

±1.0%

Load response

<5%(20%-80%-20%step load)

Recovery time

<20ms(0%-100%-0%step load)

Output THDu

<1%(linear load),<5%(non-linear load according to IEC 62040-3)

Overload

110%,1 hour;125%,10 mins;150%,1 min;>150%,200ms

Frequency accuracy

0.1%

Synchronize window

Settable,±0.5Hz-±5Hz,default ±3Hz

Slew rate

Settable,0.5Hz/S-3Hz/S,default 0.5Hz/S

Phase Accuracy

120°±0.5°

System

Ffficiency

Normal Mode≥96%;Battery Mode≥96%

Display

LED +10 inch touch LCD

Certification-Safety

EC62040-1,IEC60950-1

Certification-EMS

EC62040-2;IEC61000-4-2(ESD);IEC61000-4-3(RS);IEC61000-4-4(EFT);IEC61000-4-5(Surge)

IP degree

IP20

Configuration

USB,RS232,RS485,Dry contact,Cold start,Air filter

Option

SNMP card,AS400 card,Parallel kit,SPD,LBS

Environment

0-40℃(operation);-25℃~70℃(storage);0-95%(Humidity,non-condensing)

Noise(dB)(1 meter)

65dB @100%load,62dB @45%load

Dimention

 cabinet(W*D*H)mm

600*1000*2000

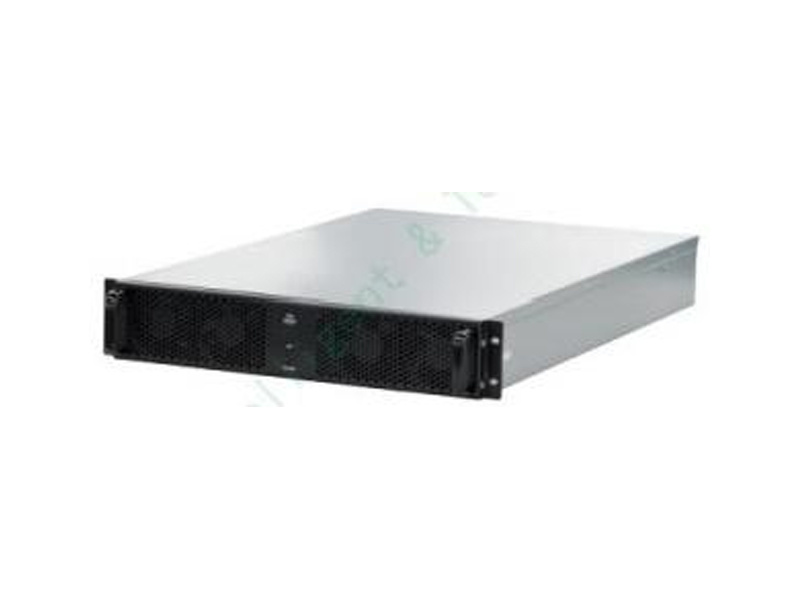

module(W*D*H)mm

440*555*85(2U)

Weight(kg)

 Cabinet

260
Module

23

Power Module rated capacity

25KW

 30KW

Statement:The products will continue to be innovative and optimized,which may lead to asynchronized updates of the actual product and promotional materials.Therefore,this document is for reference only and does not constitute any offer or commitment.
