3MT-HC-G Series
Product Details
|

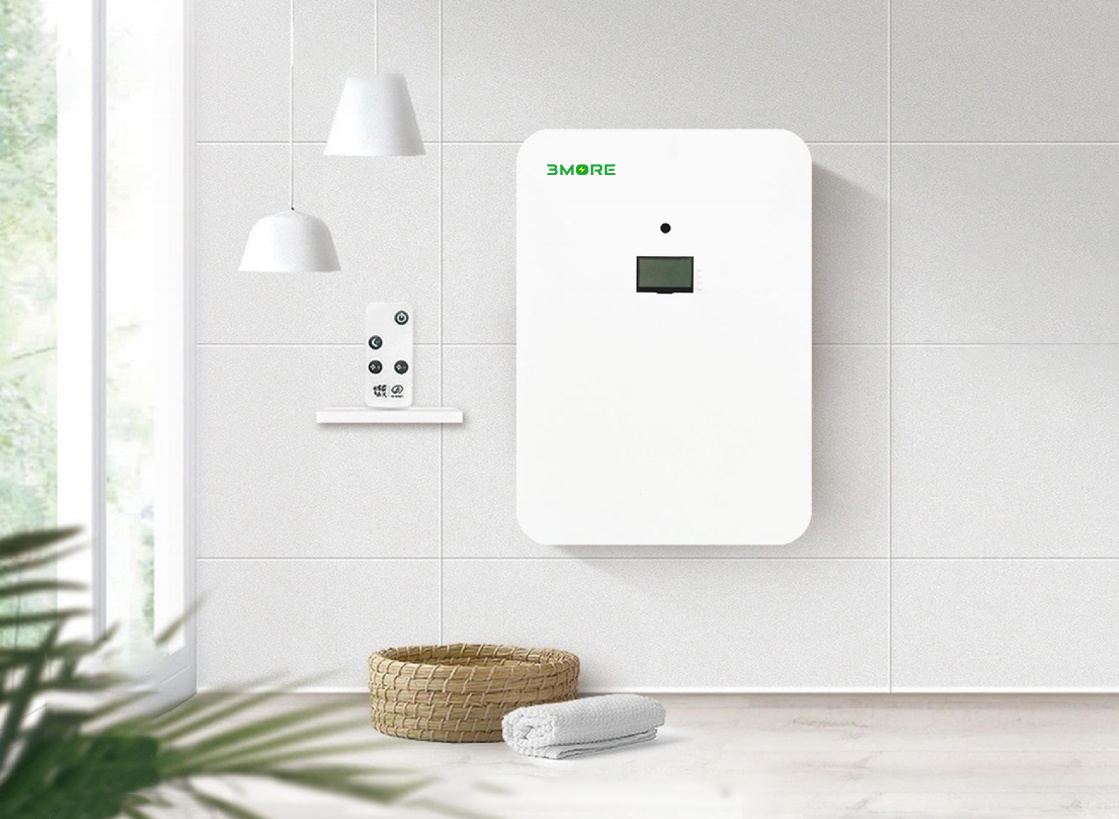

Wall-mounted lithium battery |
|
|
Model number |
3MT-HC-G51.2V 100Ah |
|
Total energy |
5.12kWh |
|
Rated Voltage |
51.2V |
|
operating voltage |
432V-57.6V |
|
Suggested discharge depth |
80% |
|
Standard continuous charging current |
20A |
|
Maximum charge current |
50A |
|
Standard continuous charging current |
50A |
|
Maximum continuous discharge current |
50A |
|
Humidity |
0-80%((No condensed water |
|
Communication protocol |
CAN/RS485/RS232 |
|
Size |
L570mm*W410mm*H199.7MM |
|
Suttle |
46.13kg |
|
Installation method |
Wall hanging |
|
Operating Conditions |
Indoor/Outdoor |
|
Cooling method |
Natural cooling |
|
Housing material |
Metal |
|
IP Grade |
IP20/IP54 |
|
Maximum number of parallel connections |
16 |
|
Battery protection |
BMS |
|
Cycle life |
≥6000 times |
|
Design Life |
10years |
|
Certification |
CE/UN38.3 |
