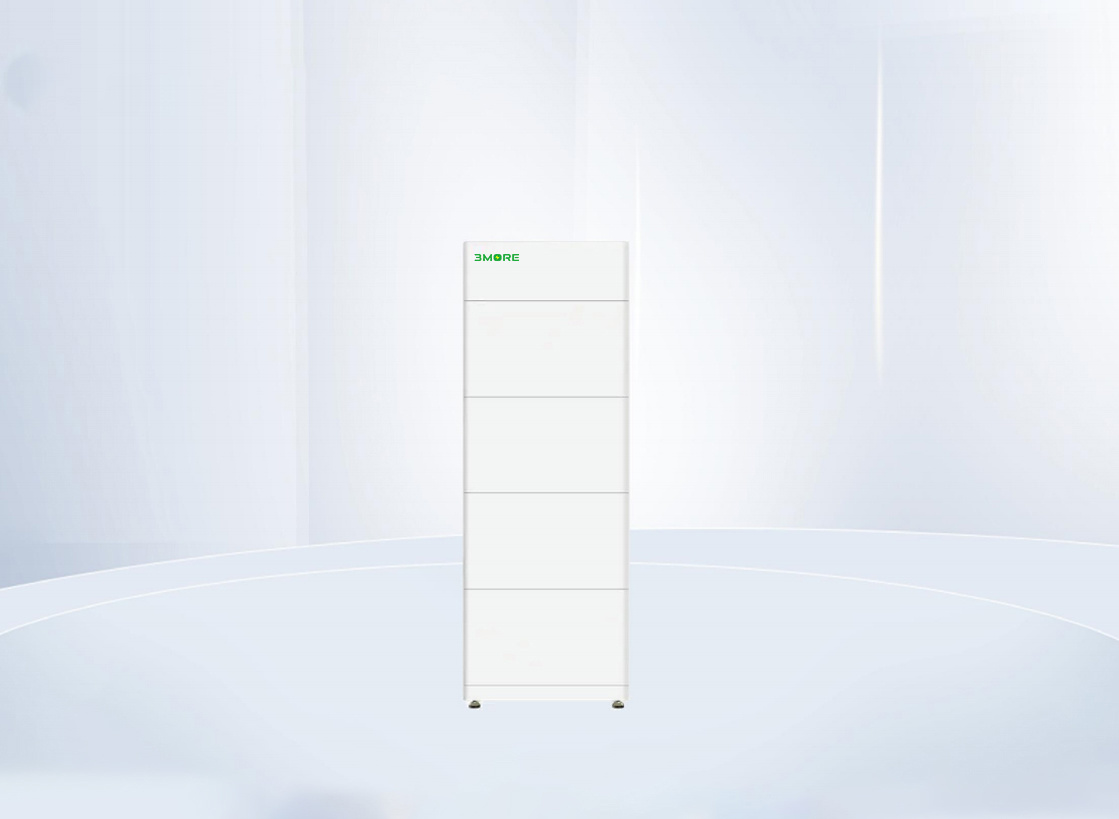

3MT-HC-H Series
Product Details
Product Features
▶ LCD Display Real-time Device Parameters
▶ Flexible Expansion to 40 kWh
▶ IsoSPI BMS Module Adaptive
▶ Compatible with hybrid inverters
▶ Intelligent battery management system
▶ Modular structure for easy installatior
▶ Long cycle life
▶ IP54 protection level
High Voltage Stackable
Series Technical Parameters
|
High Voltage Stackable Lithium Battery |
|||||
|
Mode |
3MT-HC-H6kWh |
3MT-HC-H9kWh |
3MT-HC-H12kWh |
3MT-HC-H15kWh |
3MT-HC-H18kWh |
|
Single-Layer Module Capacity |
3.072kWh |
||||
|
Layer |
2PCS |
3PCS |
4PCS |
5PCS |
6PCS |
|
Rated Voltage |
102.4V |
153.6V |
204.8V |
256V |
307.2V |
|
Nominal Capacity |
6.144kWh |
9.216kWh |
12.288kWh |
15.36kWh |
18.432kWh |
|
Operating Voltage |
86.4V-116.8V |
129.6V-175.2V |
172.8V-233.6V |
216V-292V |
259.2V-350.4V |
|
Recommended Discharge Depth |
80% |
||||
|
Standard Continuous Charging Current |
15A |
||||
|
Maximum Charging Current |
30A |
||||
|
Standard Continuous Discharge Current |
30A |
||||
|
Maximum Continuous Discharge Current |
30A |
||||
|
Humidity |
20-60% |
||||
|
Installation Method |
Stackable |
||||
|
Protection Rating |
IP54 |
||||
|
Communication Protoco |
CAN/RS485/RS232(WIFI,Bluetooth can be added according to customer requirements) |
||||
|
Dimensions/Layers |
L600*W220*H793.5 |
L600*W220*H983.5 | L600*W220*H1173.5 | L600*W220*H1363.5 | L600*W220*H1553.5 |
|
Net Weight/Layer |
32kg |
||||
|
Cycle Life |
≥6000times |
||||
|
Design Life |
10years |
||||
|
Certification |
CE/UN38.3 |
||||
|
Inverter (Three-Phase Grid-Tied/Off-Grid) |
3KW | 4KW | 5KW | 6KW | 8KW | |
|
PV Input |
Maximum Input Power |
6KW |
8KW |
10KW |
12KW |
16KW |
|
Maximum Input Voltage |
1000V |
|||||
|
MPPT Voltage Range |
125V-850V |
|||||
|
comaadto Eahapprt hat Can Be |
2/1 |
|||||
|
Maximum Input Current |
13.5A |
|||||
|
AC Output |
Rated Output Current |
16A |
22A |
27A |
27A |
38.3A |
|
Rated Output Power |
3KW |
4KW |
5KW |
6KW |
8KW |
|
|
Rated Voltage |
UPSmode: (170VAC-280VAC)±2%APLmode: (90VAC-280VAC) |
|||||
|
Output Voltage Range |
220/230VAC |
|||||
|
Rated Frequency |
50Hz/60Hz |
|||||
|
Switching Time |
<20ms |
|||||
|
Power Factor |
1(Adjustable from Leading 0.8 to Lagging 0.8) |
|||||
|
THDI |
<3% |
|||||
|
Emergency |
Maximum Output Power |
11KVA |
||||
|
Rated Output Voltage |
400V |
|||||
|
Rated Output Current |
15.9A |
|||||
|
Rated Output Frequency |
50Hz/60Hz |
|||||
|
Switching Time |
<20ms |
|||||
|
THDU |
2% |
|||||
| Efficiency |
Highest Efficiency |
98.2% |
||||
|
MPPT Efficiency |
99.50% |
|||||
|
Battery Charging and Discharging Efficiency |
97.50% |
|||||
|
Display and AC |
Display |
LCD |
||||
|
Communication |
Standard Configuration:CAN/RS485/DRM;Optional:WiFi/Bluetooth |
|||||
