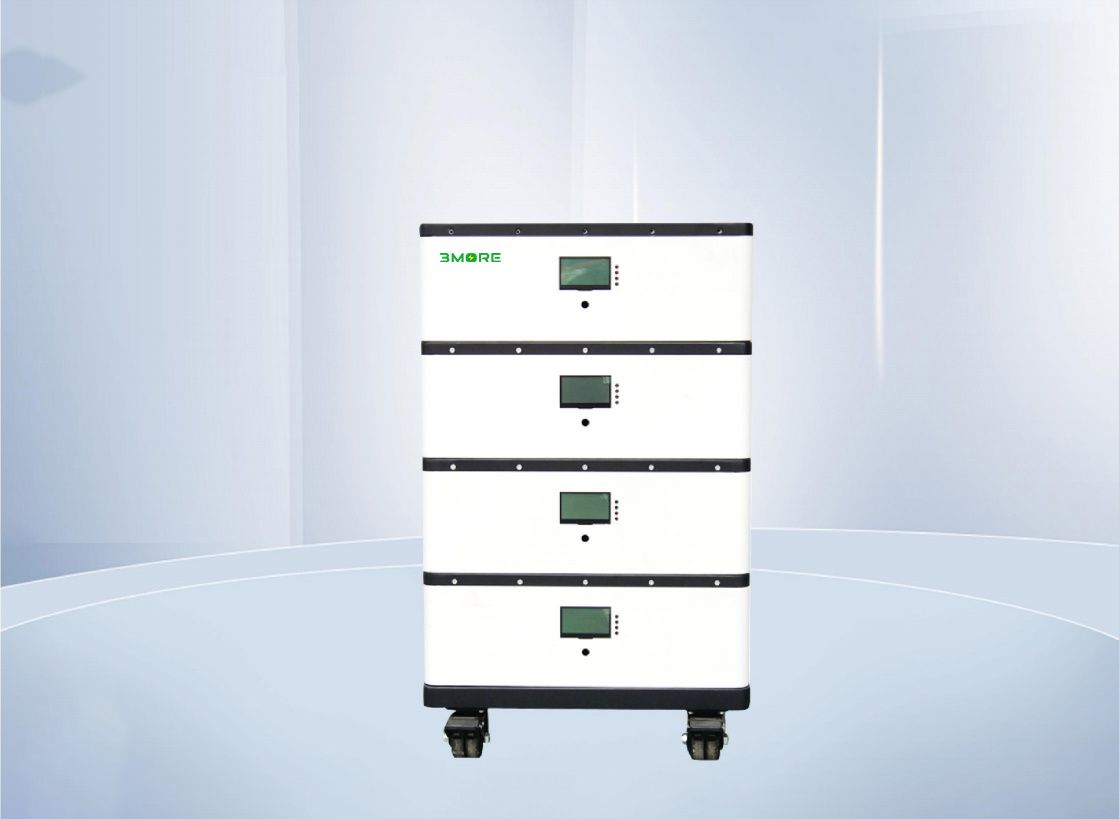

3MT-HC-L Series
3MT-HC-L Series

3MT-HC-L Series

Category： Household stacked energy storage

E-mail: Sherry.fu@3moretech.com

Inquiry Recommend

Product Details

1



Product Features

▶ LCD Liquid Crystal Display Real-time Display of Device Parameters

▶ Supports Expansion with 16 Parallel Units

▶ Supports Multiple Communication Protocols

▶ Intelligent Battery Management System

▶ Outstanding Safety Performance

▶ Modular Design for Easy Maintenance

▶ Ultra-High Charging and Discharging Power

▶ IP20/IP54 Protection Rating

Low Voltage Stacked Series

Technical Data(PCS)

Low voltage stacked lithium battery specifications
Model                                       15.36kwh   20.48kwh    30.72kwh   40.96kwh
Single layer module capacity               5.12kwh
Number of layers     3PCS     4PCS   6PCS    8PCS
Total capacity        15.36kwh 20.48kwh  30.72kwh 40.96kwh
Nominal voltage 51.2V
Working Voltage 43.2V-57.6V
Suggested discharge depth 80%
Standard continuous charging current 20A
Maximum charging current 45A
Standard continuous discharge current 45A
Maximum continuous discharge current 45A
Humidity 20-60%
Installation method Stacked
IP Grade                               IP20
Communication protocol CAN/RS485/RS232(WIFI,Bluetooth can be enhanced according to customer needs.)
Size/Layer 500*460*170.7mm
Net weightllayer 32kg
Cycle life    ≥6000 times
Design Life   10years
Certification  CE/UN38.3



PCS Energy Storage Inverter

  5KW  8KW     12KW    15KW

Photovoltaic
Input
Parameters

 Maximum PV Open Circuit Voltage

500VDC

800VDC
PV Operating Voltage Range

120-500VDC
MPPT Voltage Range

120 -450VDC
Maximum PV Input Current

18/18A

18/28A
Maximum PY Input Power

5200W

 8320W

12480W

 15600W
Maximum PV Charging Current

80A                                         120A

AC
Parameters
(Grid Side)

 Maximum Charging Current

60A
Rated Input Voltage

220/230VAC
Input Voltage Range

UPS model:(170VAC-280VAC±2%)APL APL model:(90VAC-280VAC)
Frequency    50Hz/60Hz(Automatic Detection )
Charging Efficiency (Bypass and Inverter) >95%
Switching Time           10ms(Standard  Value)
Maximum Bypass Overload Current

40A

AC  Output
Parameters
(Grid  Side)

 Output Voltage Waveform

Pure Sine Wave
Rated Output Voltage (Vac)

230VAC(200/208/220/240VAC)
Rated Output Power (W)

5000

8000

12000

15000
Peak Power

10000VA

16000VA

24000VA

30000VA

No-l oad Motor Capacity

4HP

Maximum Frequency Range (Hz)

50Hz±0.3Hz/60Hz±0.3Hz
Maximum Efficiency

>90%
No-Load Loss

Non-Energy Saving Mode:≤50W Energy Saving Mode:≤25W(Manual Setting)
