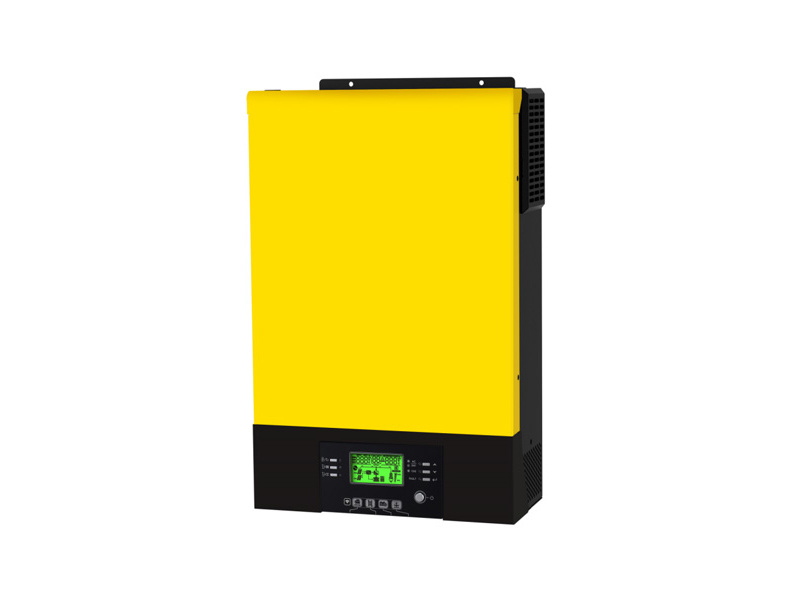

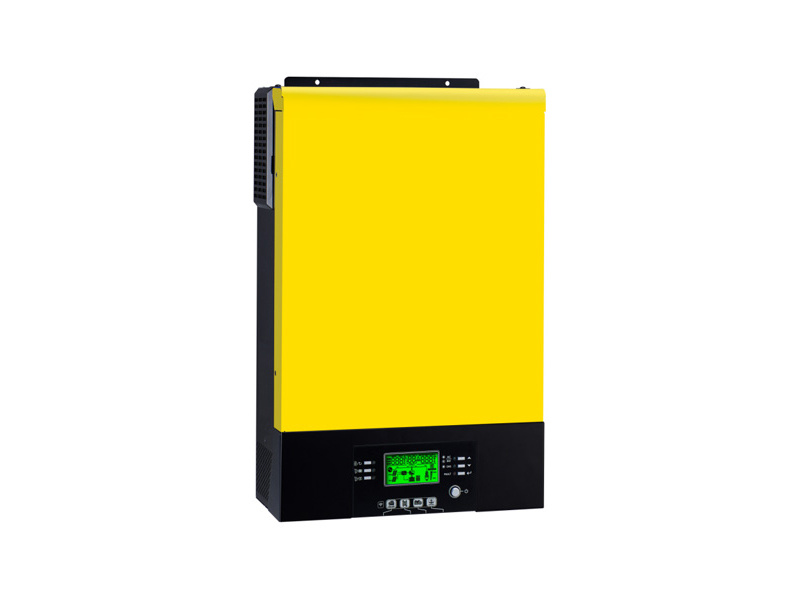

3MoreSolar V III
3MoreSolar V III
3MoreSolar V III
3MoreSolar V III
3MoreSolar V III
3MoreSolar V III

3MoreSolar V III

• Pure sine wave output • Built-in MPPT solar charger • Programmable supply priority for PV, Battery or Grid • User-adjustable charging current and voltage • Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup • Detachable LCD panel • Built-in WiFi for mobile monitoring (APP is available) • Supports USB on-the-go function • Reserve BMS communication • Parallel operation up to 9 units • Optional dual outputs as programmable output or generator input

Category： Inverter

E-mail: Sherry.fu@3moretech.com

Inquiry Recommend

Product Details

MODEL 3MORESOLAR V III 2KW 3MORESOLAR V III 3KW 3MORESOLAR V III 5KW 3MORESOLAR V III 6KW
PHASE 1-phase in / 1-phase out
Maximum PV Input Power 3000W 4500W 6000W 6000W
Rated Output Power 2000W 3000W 5000W 6000W
Maximum Charging Power 3000W 3000W 5000W 6000W
GRID-TIE OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage 240 VDC / 500 VDC 360 VDC / 500 VDC 360 VDC / 450 VDC 360 VDC / 500 VDC
Start-up Voltage / Initial Feeding Voltage 120VDC / 150 VDC 120VDC / 150 VDC 120VDC / 150 VDC 120VDC / 150 VDC
MPP Voltage Range 120 VDC ~  430 VDC 120 VDC ~  430 VDC 120 VDC ~  430 VDC 120 VDC ~  430 VDC
Number of MPP Trackers / Maximum Input Current  1 / 13 A 1 / 13A 1 / 27A 1 / 27A
GRID OUTPUT (AC)
Nominal Output Voltage 220/230/240 VAC
Output Voltage Range 184 - 264.5 VAC or 195.5 - 253 VAC (Selectable)
Nominal Output Current 8.7A 13A 21.7A 26.1A
Power Factor >0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC) 95% 95% 95% 95%
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage / Auto Restart Voltage 120 - 140 VAC / 180 VAC
Acceptable Input Voltage Range 90 - 280 VAC or 170 - 280 VAC
Frequency Range 50 Hz/60 Hz (Auto sensing)
Maximum AC Input Current 30 A 40 A 40 A 40 A
PV INPUT (DC)
Maximum DC Voltage 500 VDC 500 VDC 450 VDC 500 VDC
MPP Voltage Range  120 VDC ~  430 VDC 120 VDC ~  430 VDC 120 VDC ~  430 VDC 120 VDC ~  430 VDC
Number of MPP Trackers / Maximum Input Current  1 / 13 A 1 / 13A 1 / 27A 1 / 27A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 220/230/240 VAC
Output Waveform Pure sine wave
Efficiency (DC to AC) 93%
HYBRID OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage 360 VDC / 500 VDC 360 VDC / 500 VDC 360 VDC / 450 VDC 360 VDC / 500 VDC
Start-up Voltage / Initial Feeding Voltage 120VDC / 150 VDC 120VDC / 150 VDC 120VDC / 150 VDC 120VDC / 150 VDC
MPP Voltage Range 120 VDC ~  430 VDC 120 VDC ~  430 VDC 120 VDC ~  430 VDC 120 VDC ~  430 VDC
Number of MPP Trackers / Maximum Input Current  1 / 13 A 1 / 13A 1 / 27A 1 / 27A
GRID OUTPUT (AC)
Nominal Output Voltage 220/230/240 VAC
Output Voltage Range 184 - 264.5 VAC or 195.5 - 253 VAC (Selectable)
Nominal Output Current 8.7A 13A 21.7A 26.1A
AC INPUT
AC Start-up Voltage / Auto Restart Voltage 120 - 140 VAC / 180 VAC
Acceptable Input Voltage Range 90 - 280 VAC or 170 - 280 VAC
Maximum AC Input Current 30 A 40 A 40 A 40 A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 220/230/240 VAC
Output Waveform Pure sine wave
Efficiency (DC to AC) 93%
BATTERY & CHARGER
Nominal DC Voltage 48 VDC
Maximum Solar Charging Current 60 A 60 A 100 A 120 A
Maximum AC Charging Current 60 A 60 A 100 A 120 A
Maximum Charging Current 60 A 60 A 100 A 120 A
GENERAL
PHYSICAL
Dimension, D X W X H (mm) 140 x 295 x 468
Net Weight (kgs) 11 11 12 14
INTERFACE
Parallel Function Yes, 9 units Yes, 9 units Yes, 9 units Yes, 9 units
Communication  Port USB, RS-232, Dry Contact and WiFi
ENVIRONMENT
Humidity 0 ~ 90% RH (No condensing)
Operating Temperature -10°C to 50°C
